Maestro / Montego 1.3 Vacuum System Diagrams

[SimonR]

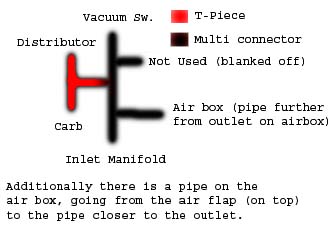

If you need to rebuild the vacuum system on a 1.3 Maestro or Montego with automatic choke then these diagrams should hopefully help. You'll need two guages of pipe and some T and L connectors but at least this will help you assemble it.

There was a revision during production - the earliest ones had a vacuum pipe leading to the heater matrix. Where this was deleted later on, the main plastic connector had one of its ports blocked off.

[Mr bump]

If you need to rebuild the vacuum system on a 1.3 Maestro or Montego with automatic choke then these diagrams should hopefully help. You'll need two guages of pipe and some T and L connectors but at least this will help you assemble it.

There was a revision during production - the earliest ones had a vacuum pipe leading to the heater matrix. Where this was deleted later on, the main plastic connector had one of its ports blocked off.

Hi Simon, I don't suppose you have a vacuum diagram for the mg1600 twin 40s set up?
or is this virtually the same?
