Wiring diagram wanted for front e-windows '93 Montego

[Jeroen]

Both front electric windows are not working properly. Sometimes they go down and up, most of the times they don't. I have a wiring diagram for the Montego 2.0 till '88, but after around '90 they replaced much of the electric window electric systems, as I have found out on my '93 lhd "Rover Estate".
To have a look on the right wiring diagram would be most helpful, but it also helps if anyone can tell me where the controller box is located.

[Doctordiesel77]

The controller is on top of the glovebox (two big screws inside glovebox hold the top cover with controller on), quite reasonably priced at Rimmer's https://rimmerbros.com/Item--i-DRC8908P. I should have a wiring diagram somewhere too, will have a look later.

[Jeff Turbo]

The controller is on top of the glovebox (two big screws inside glovebox hold the top cover with controller on), quite reasonably priced at Rimmer's https://rimmerbros.com/Item--i-DRC8908P. I should have a wiring diagram somewhere too, will have a look later.

That's a wiper motor control john. Part number is EEP0092

[Doctordiesel77]

That's a wiper motor control john. Part number is EEP0092

Ooops! Good point...my excuse is that it was early in the morning! When my windows started acting up it was the controller, seemed to be a bad connection somewhere inside, probably just luck that I didn't change the wiper controller & wonder why it still didn't work

[Jeroen]

Thanks! I hope you can find the proper wiring diagram! Last afternoon we've been working on finding the problem again. We unscrewed and lifted off the plastic centre console where the front e-window swiches are located on a '93 Montego and tried to follow the wire bundles, but this did not result in anything apart from discovering that a hose for the interior ventilation was loose, which we then fixed.

[Jeff Turbo]

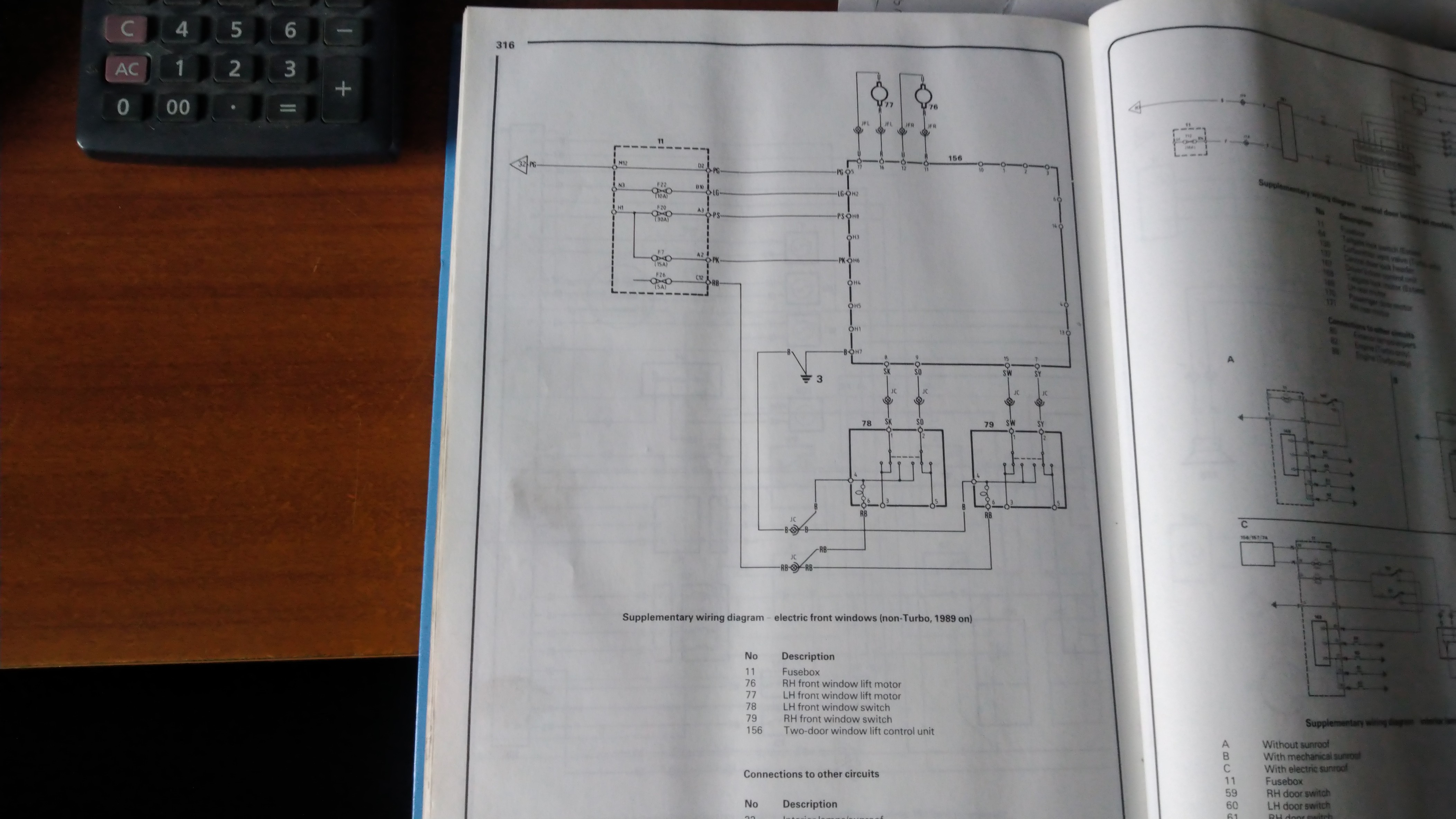

Here, from memory they're all. grey wires with colours on the ends. As said by John, the control unit is at the top of the glove box. If you remove the top stay screws at the top in side it, it will drop down

[zephyr]

If i can shove my two penneth in; i've recently brought back to life a Montego estate that had been sat dormant in a garage for 16 years and had similar issues with the electric front windows. Having exhausted everything else attention turned to the control unit (EEP0092) as mentioned by Jeff. See pictures for what we found. I happened to have a second hand spare unit but when fitted it didn't work properly either, in fact we had to electrically feed the motors to get the windows back up again. After opening the second hand unit up we found someone had been in there before and saw an identical break to the one in the pictures which someone had soldered up. However another part of the circuit had broken. In the end i sourced a new unit from Damen & Kroes in the Netherlands. It wasn't cheap but having seen quotes of over £100 just to look at the old unit, never mind trying to fix it i was looking at similar money against a new one. Even if the old unit could be fixed there was no guarantee the repaired unit would last any length of time. As a further irritation i got hit with import vat and Royal Mail handling fees on top so not a cheap fix but a reliable one at least. Hope this saves time. if you open up your EEP0092 be extrmemly careful as the tiny black capacitors? (bottom left in the p icture) are easily knocked off

[Jeff Turbo]

If i can shove my two penneth in; i've recently brought back to life a Montego estate that had been sat dormant in a garage for 16 years and had similar issues with the electric front windows. Having exhausted everything else attention turned to the control unit (EEP0092) as mentioned by Jeff. See pictures for what we found. I happened to have a second hand spare unit but when fitted it didn't work properly either, in fact we had to electrically feed the motors to get the windows back up again. After opening the second hand unit up we found someone had been in there before and saw an identical break to the one in the pictures which someone had soldered up. However another part of the circuit had broken. In the end i sourced a new unit from Damen & Kroes in the Netherlands. It wasn't cheap but having seen quotes of over £100 just to look at the old unit, never mind trying to fix it i was looking at similar money against a new one. Even if the old unit could be fixed there was no guarantee the repaired unit would last any length of time. As a further irritation i got hit with import vat and Royal Mail handling fees on top so not a cheap fix but a reliable one at least. Hope this saves time. if you open up your EEP0092 be extrmemly careful as the tiny black capacitors? (bottom left in the p icture) are easily knocked off

Been there before Arthur so I feel your pain

[Jeff Turbo]

If you get desperate there's one here. Can't be sure it's working though https://ecooparts.com/recambio-autom...20-735-kw.html
This site also has a complete air con unit for a Montego if anyone is interested

[Jeroen]

Thanks for the effort, Jeff and zephyr. These pics look helpful. Let's see in the coming days or weeks, depending on when we have time to work on it, if we can mend the problem.

[Jeroen]

At the end of last week I received a Haynes manual that covers the Montego 2.0 till 1995, so now I have the wiring diagram Jeff sent me on 20 September as well as other changes to the Montego the Haynes for the models till 1988 didn't cover. There are more changes than I thought! For example, the models after 1988 have a different heating system.

Last Saturday we've opened the control unit and discovered a "bridge" was melted. This can be mended, which has been done yesterday, but you have to search further in order to find the cause of the burn, otherwise it may burn again. On Saturday we got the left hand window working by connecting it directly and sitting at its lowest position I sprayed the upper window frame with silicone spray. I did the hand wind rear windows as well and especially the right hand rear window now winds substantially easier.

[Jeroen]

One possibility that could be the cause of the right hand window not working could be a burned motor. Yesterday we tested it and luckily it was working. "Luckily", because the motor is mounted at a difficult spot and we couldn't find a possibility to take it off without lowering the window, which is not possible, as the window doesn't move.
The colleague who worked with me on the window systems took the Pektron print plate home together with my new Haynes workshop manual, as he told that at home he has better facilities.

All in all we can conclude that things are progressing.
